Typhoon, a Division of Engineered Air








VPAC 9700C-XX Water-Cooled Constant Volume Single Package Vertical Unit (CV) With Integral Condensers
Or
Variable Volume Single Package Vertical Unit (VAV) with Integral Condenser with Honeywell W7100A Microprocessor & VFD Controls (VAV)
5-100 Ton Capacity
FOR USE INDOORS

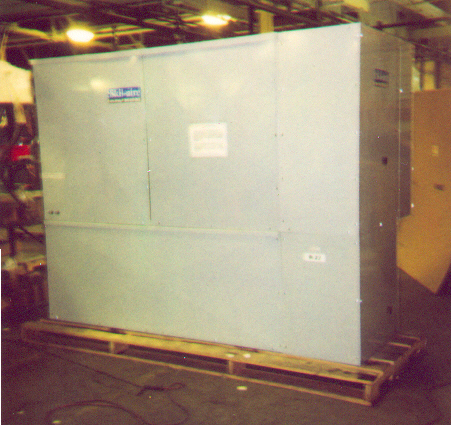

W/C VPAC (Front)

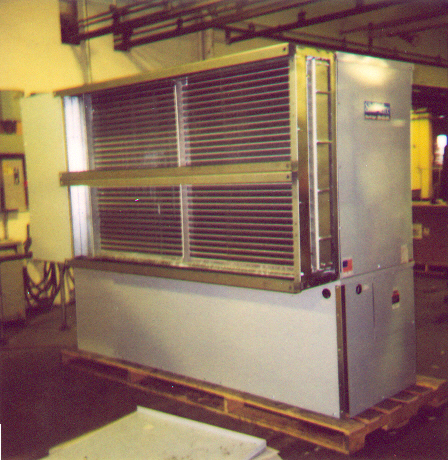

W/C VPAC (Rear)

Units come with a one year limited parts warranty for extended warranty see Options.

NOTE: RSI Company/Manufacturer reserves the right to discontinue or change at any time, these published specifications and designs without notice or obligation. As RSI VPAC unit features are continually upgraded to satisfy contemporary market demands, RSI will not provide retroactive feature changes to units sold prior to the date these upgrades are implemented.

System Description

Indoor Mounted electrical cooling unit utilizing scroll/semi-hermetic compressors for cooling duty. Unit shall discharge supply air vertically or horizontally.

Marketing feature comparisons include competitive pricing, high quality subcomponents and short delivery. The overall product quality of construction is equal to that produced for this market by the competition. Superior features include:

  • knock-down bolted framing

  • narrow-profile design cabinetry

  • modular construction

  • scroll compressors

  • stainless steel drain pans

  • 1800 rpm blower motors/heavy duty drives

  • large coil face areas

  • silver brazed copper refrigerant piping.

All units are factory run tested prior to shipment, certified (ITS/ETL) per UL1995, CSA C22.2, MEA, NY Dept. of Buildings. RSI products are available for OEM brand labeling.

Features

  • Floor-By-Floor Design

  • Heavy Gauge Gray-Pearl Painted Cabinet with Removable Panels

  • Unit Frame is Free-Standing Post Construction Welded & Bolted

  • Removable integral 304SS stainless steel condensate sloped drain pan

  • Evaporator Fan Compartment, interior cabinet surfaces are insulated with "Tuff Skin" faced fiberglass

  • Voltage: 208/3/60 480/3/60 or 575/3/60

  • Constant Volume or Variable Air Volume w/Factory Mounted Controls

  • Vertical or Horizontal Supply Air Discharge

  • R-22 Refrigerant

  • Multiple Scroll or Semi-Hermetic Compressors with Independent Circuits

  • Evaporator Coils specially designed for independent, two-circuit operation

  • Evaporator Coils have Copper Tubes

  • Fan Wheels are double-inlet type with forward curved blades

  • High-Efficiency Shell/Tube Condensers

  • Pre-Wired Electrical Control Centers

  • Automatic Reset and Low Pressure Switches

  • Motors are E+ open drip proof, thermally protected internal through 5 HP external through 7.5 HP and up

For a list of our factory-installed options, Please click here.
